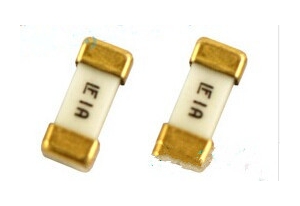

SMD Fuses

Name：series 0451/0453

Model：

Category：SMD Fuses

Product Features：

Very fast fuse fuse, with small size, 62 ma ~ 15 a current range, temperature range - to 55 ° C to 125 ° C, lead-free halogen-free product。

PDF Download

Parameter Description

Electrical Specifications by Item

Ampere rating (A)	Amp code		Max Voltage rating (V)	Interrupting rating	Nominal cold resistance (Ohms)	Nominal melting i2t (A2sec)



0.620	0451.062	0453.062	125	50 amperes @125VAC/VDC 300 amperes @32VDC PSE: 100 amperes @100VAC	5.5000	0.00019
0.080	0451.080	0453.080			4.0500	0.00033
0.100	0451.100	0453.100			3.1000	0.00138
0.125	0451.125	0453.125			1.7000	0.00286
0.160	0451.160	0453.160			1.2157	0.0048
0.200	0451.200	0453.200			0.8372	0.0089
0.250	0451.250	0453.250			0.5765	0.0158
0.315	0451.315	0453.315			0.3918	0.0311
0.375	0451.375	0453.375			0.4541	0.0442
0.400	0451.400	0453.400			0.4233	0.0551
0.500	0451.500	0453.500			0.3046	0.0824
0.630	0451.630	0453.630			0.2022	0.1381
0.750	0451.750	0453.750			0.1444	0.2143
0.800	0451.800	0453.800			0.1355	0.2654
1.00	0451001.	0453001.			0.0780	0.6029
1.25	04511.25	04531.25			0.0780	0.664
1.50	045101.5	045301.5			0.0630	0.853
1.60	045101.6	045301.6			0.0580	1.060
2.00	0451002.	0453002.		50 amperes @125VAC/VDC 1000 amperes @75VDC 300 amperes @32VDC PSE: 100 amperes @100VAC	0.0367	0.530
2.50	045102.5	045302.5			0.0286	1.029
3.00	0451003.	0453003.			0.0227	1.650
3.15	04513.15	04533.15			0.0215	1.920
3.50	045103.5	045303.5			0.0200	2.469
4.00	0451004.	0453004.			0.0160	3.152
5.00	0451005.	0453005.			0.0125	5.566
6.30	045106.3	045306.3		50 amperes @125VAC/VDC 300 amperes @32VDC PSE: 100 amperes @100VAC	0.0096	9.170
7.00	0451007.	0453007.			0.0090	10.32
8.00	0451008.	0453008.			0.0077	20.23
10.00	0451010.	0453010.		35 amperes @125 VAC/ 50 amperes @125 VDC 300 amperes @32 VDC PSE: 100 amperes @100VAC	0.0056	26.46
12.00	0451012.	0453012.	65	50 amperes @65 VAC/VDC 300 amperes @24 VDC	0.0049	47.97
15.00	0451015.	0453015.	65	50 amperes @65 VAC/VDC 300 amperes @24 VDC	0.0037	97.82

Notes:
- l2t calculated at 8ms.
- Resistance is measured at 10% of rated current, 25ºC

Dimensions Part Numbering System
