聚鼎/聚达

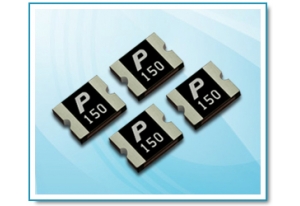

产品名称：SMD2016P系列

产品型号：SMD2016P

产品类别：聚鼎/聚达

产品特征：
SMD 2016
0.3A - 2.0A

PDF文件下载

产品参数详细说明

Description

The 2016 series provides surface mount resettable overcurrent protection with

holding current from 0.3A to 2.0A. This series is suitable for applications with higher

holding currant and higher working voltage up to 60V.

Features

RoHS compliant and lead-free

Halogen-free

High voltage

Low profile

Fast response to fault current

Compatible with high temperature solders

Electrical Characteristics

Part Number	I hold (A)	I trip (A)	V max (Vdc)	I max (A)	Pd max. (W)	Maximum		Resistance		Agency Approval
						Time To Trip		Resistance
						Current	Time	R min	R 1max
						(A)	(Sec.)	(Ω)	(Ω)
SMD2016P030TF	0.30	0.60	60.00	20.00	1.40	1.50	3.00	0.50	2.30	UL/CSA/TÜV
SMD2016P050TF	0.55	1.10	60.00	20.00	1.40	2.50	5.00	0.20	1.00	UL/CSA/TÜV
SMD2016P075TF	0.75	1.50	60.00	20.00	1.40	8.00	0.50	0.13	0.90	UL/CSA/TÜV
SMD2016P100TF	1.10	2.20	15.00	40.00	1.40	8.00	0.50	0.10	0.40	UL/CSA/TÜV
SMD2016P100TF/33	1.10	2.20	33.00	40.00	1.40	8.00	0.50	0.10	0.40	UL/CSA/TÜV
SMD2016P150TF	1.50	3.00	15.00	40.00	1.40	8.00	1.00	0.07	0.18	UL/CSA/TÜV
SMD2016P200TF	2.00	4.20	6.00	40.00	1.40	8.00	3.00	0.05	0.10	UL/CSA/TÜV
