聚鼎/聚达
产品名称:

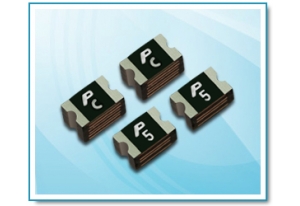

SMD0805P系列
产品型号:SMD0805P
产品类别:
聚鼎/聚达
产品特征
:
SMD 0805
0.1A - 1.1A
PDF文件下载
产品参数
详细说明
Description
The 0805 series provides miniature surface mount resettable overcurrent protection
with holding current from 0.1A to 1.1A. This series is suitable for ultra portable
applications where space is at a premium and the device current is low.
Features
RoHS compliant and lead-free
Halogen-free
Compact design saves board space
Low profile
Fast response to fault current
Compatible with high temperature solders
Electrical Characteristics
Part Number
I hold (A)
I trip (A)
V max (Vdc)
I max (A)
Pd max. (W)
Maximum
Resistance
Agency Approval
Time To Trip
Current
Time
R min
R 1max
(A)
(Sec.)
(Ω)
(Ω)
SMD0805P010TF
0.1
0.3
15
100
0.5
0.5
1.5
1
6
UL/CSA/TÜV
SMD0805P020TF
0.2
0.5
9
100
0.5
8
0.02
0.65
3.5
UL/CSA/TÜV
SMD0805P035TF
0.35
0.75
6
100
0.5
8
0.1
0.25
1.2
UL/CSA/TÜV
SMD0805P050TF
0.5
1
6
100
0.5
8
0.1
0.15
0.85
UL/CSA/TÜV
SMD0805P075TF
0.75
1.5
6
40
0.6
8
0.2
0.09
0.35
UL/CSA/TÜV
SMD0805P100TF
1
1.95
6
40
0.6
8
0.3
0.06
0.21
UL/CSA/TÜV
SMD0805P110TF
1.1
2
6
100
0.8
8
0.1
0.05
0.16
UL/CSA/TÜV
