Benefits
• Smaller size saves board space and cost
• Many product choices give engineers more design
flexibility
• Compatible with high-volume electronics assembly
• Assists in meeting regulatory requirements
• Higher voltage ratings allow use in new applications
Features
• RoHS compliant
• Halogen free (refers to: Br≤900ppm, Cl≤900ppm, Br+Cl≤1500ppm)
• Broadest range of resettable devices available in the industry
• Current ratings from 0.05 to 3A
• Voltage ratings from 6V computer and electronic applications to 60V telecom applications
• Agency recognition: UL, CSA, TÜV
• Small footprint
• Fast time-to-trip
• Low resistance
Electrical Characteristics
| Part Number |
IH (A) |
IT (A) |
VMAX (VDC) |
IMAX (A) |
PD MAX (W) |
Max.Time-to-Trip |
RMIN (Ω) |
R1MAX(Ω) |
| (A) |
(S) |

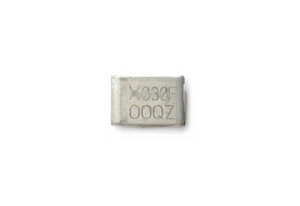

| SMD030F |
0.30 |
0.60 |
60 |
10 |
1.70 |
1.50 |
3.00 |
1.200 |
4.800 |
| SMD050F |
0.50 |
1.00 |
60 |
10 |
1.70 |
2.50 |
4.00 |
0.350 |
1.400 |
| SMD075F |
0.75 |
1.50 |
30 |
40 |
1.70 |
8.00 |
0.30 |
0.350 |
1.000 |
| SMD075F/60 |
0.75 |
1.50 |
60 |
10 |
1.70 |
8.00 |
0.30 |
0.350 |
1.000 |
| SMD100F |
1.10 |
2.20 |
30 |
40 |
1.70 |
8.00 |
0.50 |
0.120 |
0.480 |
| SMD100F/33 |
1.10 |
2.20 |
33 |
40 |
1.70 |
8.00 |
0.50 |
0.120 |
0.410 |
| SMDH120 |
1.20 |
2.30 |
16 |
50 |
2.00 |
8.00 |
2.00 |
0.150 |
0.340 |
| SMD125F |
1.25 |
2.50 |
15 |
40 |
1.70 |
8.00 |
2.00 |
0.070 |
0.250 |
| SMD260F |
2.60 |
5.20 |
6 |
40 |
1.70 |
8.00 |
20.00 |
0.025 |
0.075 |
| SMD300F |
3.00 |
6.00 |
6 |
40 |
1.50 |
8.00 |
35.00 |
0.015 |
0.048 |
| SMD300F/15 |
3.00 |
6.00 |
15 |
40 |
1.50 |
8.00 |
35.00 |
0.015 |
0.050 |
