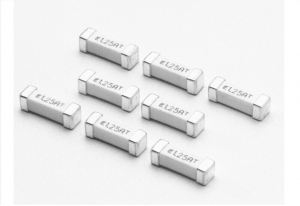

贴片保险丝

产品名称：0461系列

产品型号：

产品类别：贴片保险丝

产品特征：

延时熔断保险丝，小尺寸广泛用于电信及网络设备，无铅无卤产品。

PDF文件下载

产品参数详细说明

Electrical Specifications by Item

Ampere rating (A) Amp code Max Voltage rating (V) Interrupting rating Nominal cold resistance (Ohms) Nominal melting   i2t (A2sec)

0.500 0461.500 600 60 A @600 VAC
100 A @80 VDC 0.5600 0.84

1.250 04611.25 0.1100 16.5

2.000 0461002. 0.0500 17.5

1 I2t is calculated at 10 msecs. or less. I2t at 10 times rated current has a typical value of:
24 A2sec (2.0A), 22 A2sec (1.25A), 1.3 A2sec (0.5A).
• Typical inductance <40nH up to 500 MHz.
• Resistance changes 0.5% for every °C.
• Resistance is measured at 10% rated current.

Dimensions

Part Numbering System

Ampere rating (A)	Amp code	Max Voltage rating (V)	Interrupting rating	Nominal cold resistance (Ohms)	Nominal melting i2t (A2sec)



0.500	0461.500	600	60 A @600 VAC 100 A @80 VDC	0.5600	0.84
1.250	04611.25			0.1100	16.5
2.000	0461002.			0.0500	17.5
